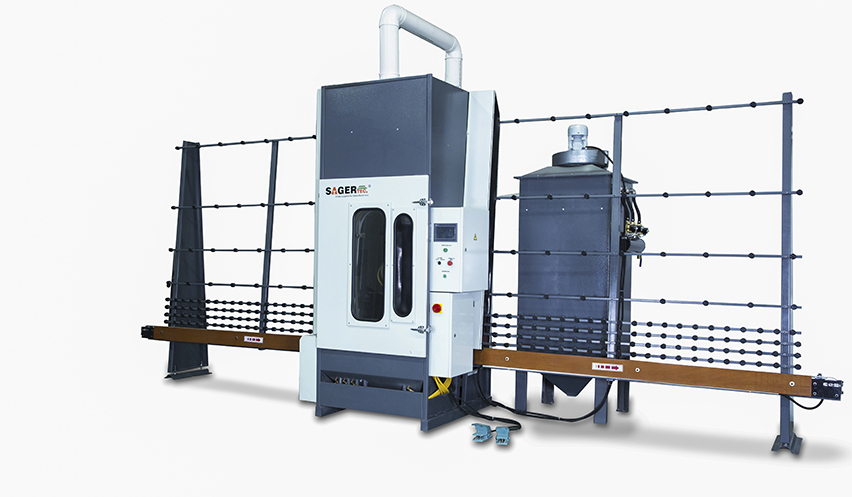

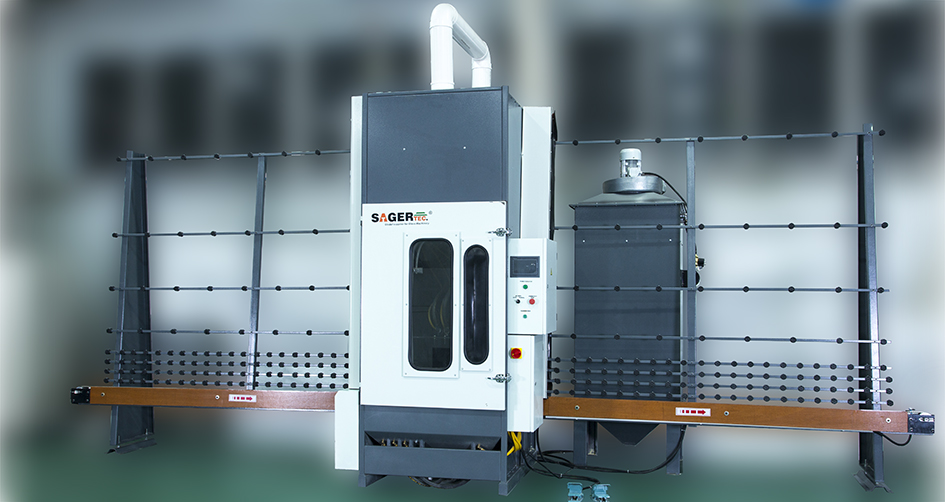

The glass sandblasting machine is controlled by PLC with touch screen. It is equipped with 3 automatic sandblasting guns, which controlled by programs, and also one more gun for manually, so that be available for both bulk production and single piece processing .
|
Model |
SZ-PS1600 |
|
Max.glass size |
1600*3000mm |
|
Min.glass size |
300*300mm |
|
Processing speed |
20-25 Sqm/hour |
|
Power |
3.5KW |
|
Air compressor |
22KW 0.8Mpa 3 M3 |
|
Dimension |
4500*1500*2300mm |
|
Weight |
1000kg |
|
Model |
SZ-PS2000 |
|
Max.glass size |
2000*3660mm |
|
Min.glass size |
300*300mm |
|
Processing speed |
22-26 Sqm/hour |
|
Power |
3.5KW |
|
Air source |
22kw 0.8Mpa 1 M3 |
|
Dimension |
6800*1500*2800mm |
|
Weight |
1200kg |
The glass sandblasting machine equipped with PLC with touch screen, the feeding speed , working cycles and sandblasting area could be set on the touch screen, the dusts collection system could collect the dusts and glass powder , so that can creat a clean working condtion.
|
Model |
SZ-PS2500 |
|
Max.glass height |
2500*3660mm |
|
Min.glass size |
300*300mm |
|
Processing speed |
23-26 Sqm/hour |
|
Power |
3.5KW |
|
Air source |
22kw 0.8Mpa 1 M3 |
|
Dimension |
6800*1500*3300mm |
|
Weight |
1300kg |
