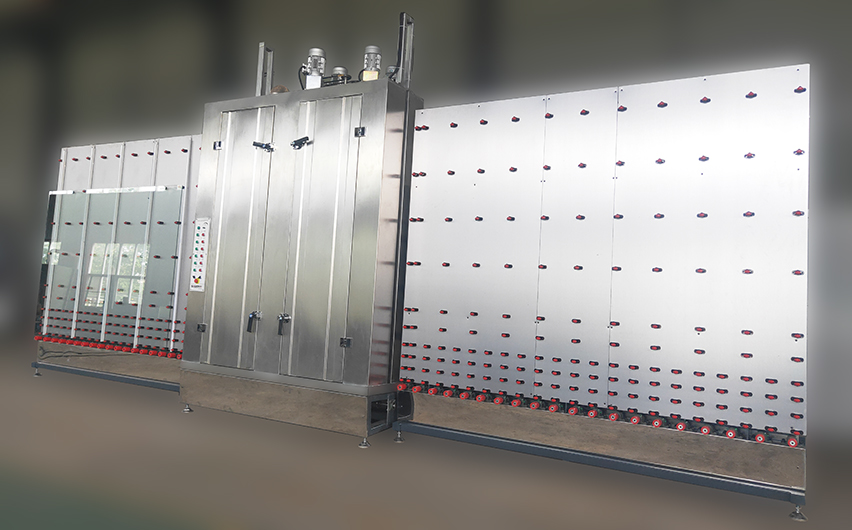

SZ-VW25 glass washing machine

The vertical glass washing machine adopts vertical structure and is used for cleaning and drying flat glass. All the part contacted with water are stainless steal made in washing section, top-open design for extending height. It is possible to wash the low-e glass or other coated glass.





The vertical glass washing machine equipped with 3 pair of brushes (∮150mm) with water spray; a pair of air-knife generates strong air, so that can obtain a fast speed with effective washing quality, The glass thickness can be adjusted bwteen3-12mm by means of a spring made of stainless steel



Model

SZ-VW25

Max.Glass Height

2500mm

Min.Glass Size

500x500mm

Glass Thickness

3-12mm

Processing Speed

2-6.5M/min

Brushes

3 Pairs

Weight

2500kg

Dimension

6000*2000*3200mm
